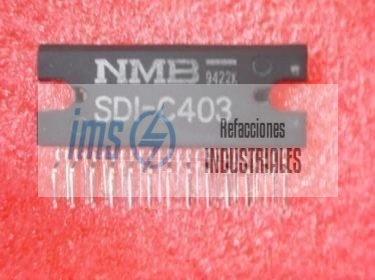

• SDI-C403

SDI-C403

$31.50
Tax included

VARIOS

Última actualización

DatasheetSDI-C403

1.5A/40VDC/1U

No Identificado

Delivery time :

Agotado

Interested in this product? Drop us an email and we will let you know when it's available for order.

  Security policy

Tus compras son seguras

  Delivery policy

Envíos gratuitos en compras mayores a 160USD sin iva. La entrega depende de la disponibilidad.

  Return policy

Todos nuestros productos cuentan con una garantía contra defectos de fabricación.

Features

  • 4 phase stepping motor microstepping drive
  • Driver u00e2u0080u00a6u00e2u0080u00a6u00e2u0080u00a6..Bipolar chopper PWM
  • Chopper frequency u00e2u0080u00a6u00e2u0080u00a6u00e2u0080u00a6.. 20 - 40 kHz
  • Current per phaseu00e2u0080u00a6u00e2u0080u00a6u00e2u0080u00a6.. 1.5 ARMS (2.5A peak)
  • Output voltage u00e2u0080u00a6u00e2u0080u00a6 40 Vdc max.
  • Step angle u00e2u0080u00a6u00e2u0080u00a6u00e2u0080u00a6 1 - 1/2 - 1/4 - 1/8
  • Inputs u00e2u0080u00a6u00e2u0080u00a6.. Step, direction, drive enable, current reduction ; (CMOS type with integrated 40 kOhms pull-up resistor)
  • Output ......... driver status monitor (+- 2 mA max)
  • Package ....... CPP - 25 pins /25W)
  • Power supply PWM ....... 24 Vdc (40 Vdc max)
  • logic ... 5 Vdc +- 10 %
  • Operating temperature ........ - 40 to + 85 C

Aplications

  • Semiconductors High Power Equipment Repair

  • Brand
  • MPN
    SDI-C403
