• PM100RSD060

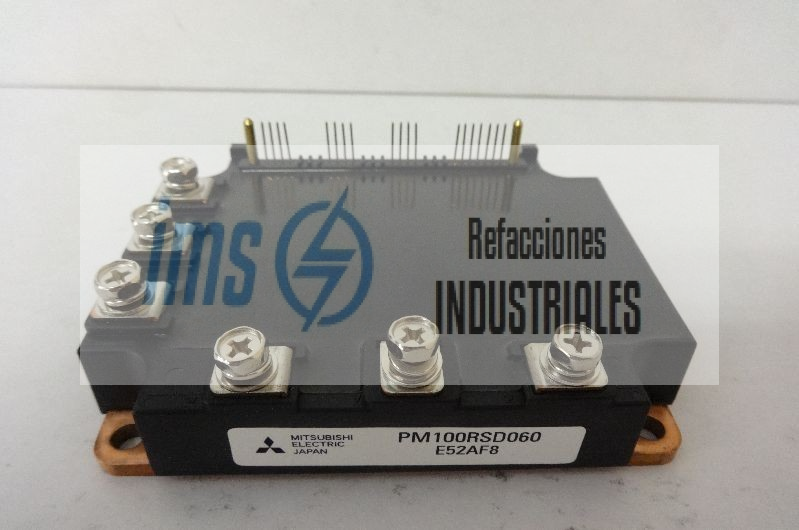

PM100RSD060

$177.19
Tax included

IGBT - IPM

Última actualización

DatasheetPM100RSD060

100A/600V/7U

No Identificado

Delivery time :

Agotado

Interested in this product? Drop us an email and we will let you know when it's available for order.

  Security policy

Tus compras son seguras

  Delivery policy

Envíos gratuitos en compras mayores a 160USD sin iva. La entrega depende de la disponibilidad.

  Return policy

Todos nuestros productos cuentan con una garantía contra defectos de fabricación.

Features

  • INTELLIGENT POWER MODULE
  • Adopting new 4th generation planar IGBT chip, which performance is improved by 1um fine rule process. For example, typical VCE(sat)=1.7V
  • Using new Diode which is designed to get soft reverse recovery characteristics
  • Keeping the package compatibility
  • The layout/position of both terminal pin and mounting hole is same as S-series 3RD generation IPM
  • 3 phase 100A, 600V Current-sense IGBT for 15kHz switching
  • 30A, 600V Current-sense regenerative brake IGBT
  • Monolithic gate drive & protection logic
  • Detection, protection & status indication circuits for over-current, short-circuit, over-temperature &
  • under-voltage (P-Fo available from upper leg devices)
  • Acoustic noise-less 11kW class inverter application
  • UL Recognized Yellow Card No. E80276(N)
  • File No. E80271

Aplications

  • Applications
  • General purpose Inverter
  • Servo drives
  • Motor control

  • Brand
  • MPN
    PM100RSD060
