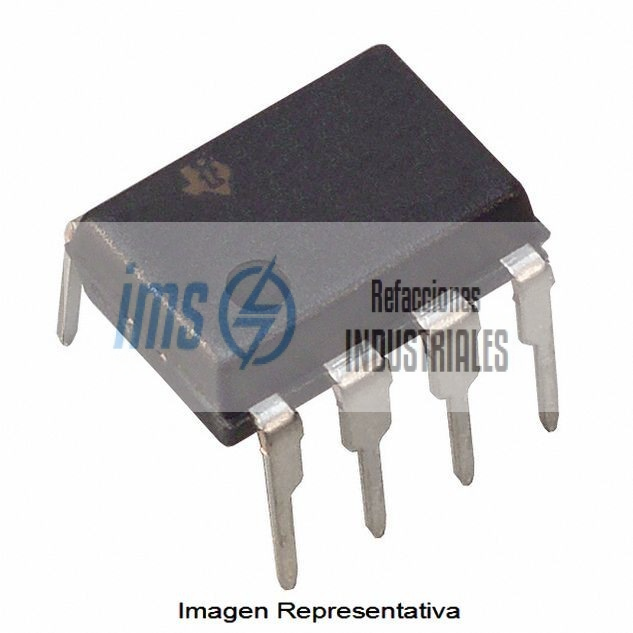

• 4422CN

4422CN

$13.13
IVA incluido

VARIOS

Última actualización

Datasheet4422CN

9Apeak/18V/8 pin

No Identificado

Delivery time :

Agotado

Interested in this product? Drop us an email and we will let you know when it's available for order.

  Security policy

Tus compras son seguras

  Delivery policy

Envíos gratuitos en compras mayores a 160USD sin iva. La entrega depende de la disponibilidad.

  Return policy

Todos nuestros productos cuentan con una garantía contra defectos de fabricación.

Features

  • 9A-Peak Low-Side MOSFET Driver
  • Fearures
  • BiCMOS/DMOS Construction
  • Latch-Up Proof : Fully Isolated Process in
  • Inherently Immune to Any Latch-up
  • Input Will Withstand Negative Swing of
  • Up to 5 V
  • Matched Rise and Fall Times u00e2u0080u00a6.. 25ns
  • High Peak Output Current ..... 9A Peak
  • Wide Operating Range ...... 4.5V to 18V
  • High Capacitive Load Drive .....47000pF
  • Low Delay Time .................... 30ns Typ.
  • Logic High Input for Any Voltage from
  • 2.4V to VS
  • Low Equivalent Input Capacitance (typ)
  • ... 7pF
  • Low Supply Current .. 450uA With Logic 1 Input
  • Low Output Impedance ............ 1.5 Ohms
  • Output Voltage Swing to Within 25mV of
  • GND or VS

Aplications

  • Applications
  • Switch Mode Power Supplies
  • Motor Control
  • Pulse Transformer Drive
  • Class-D Switching Amplifiers
  • Line Drivers
  • Driving MOSFET or IGBT Parallel
  • Chip Modules
  • Local Power ON/OFF Switch
  • Pulse Generators

  • Nº Pieza fabricante (NPM)
    4422CN
