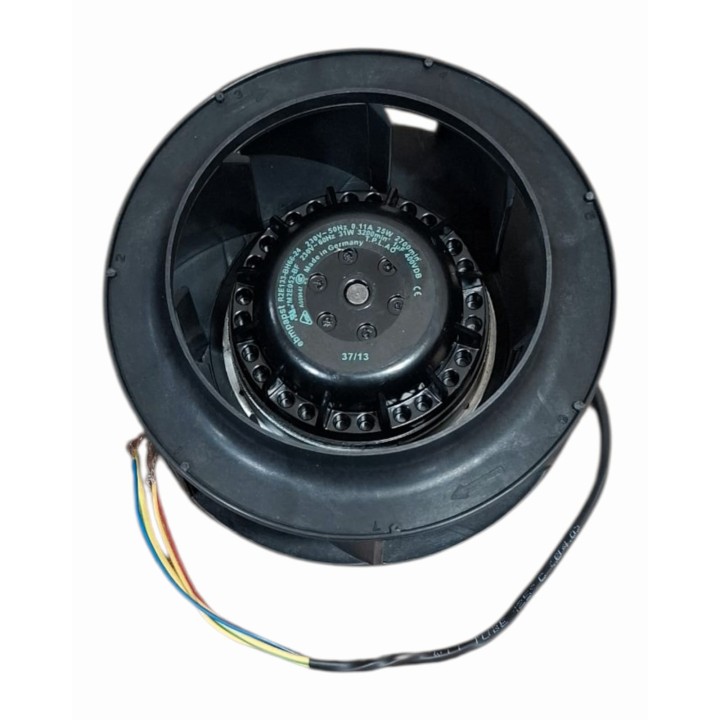

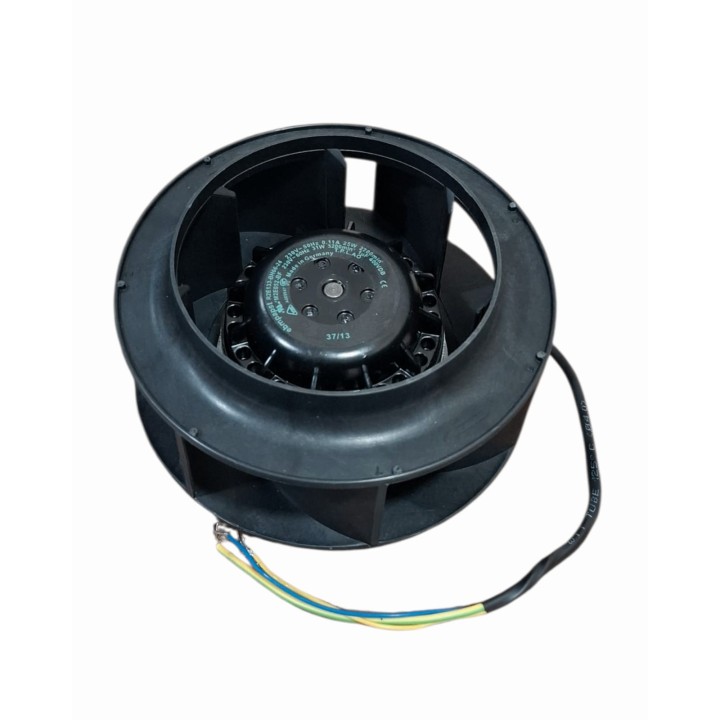

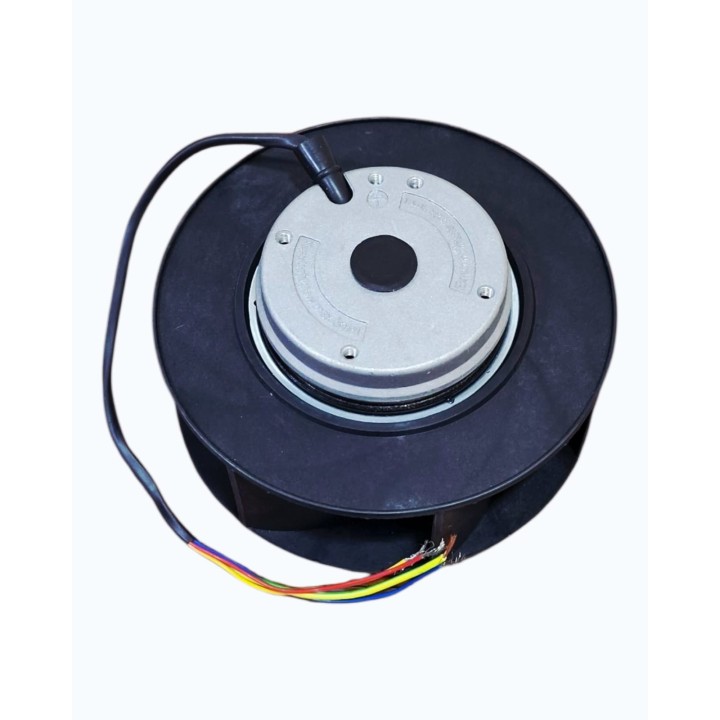

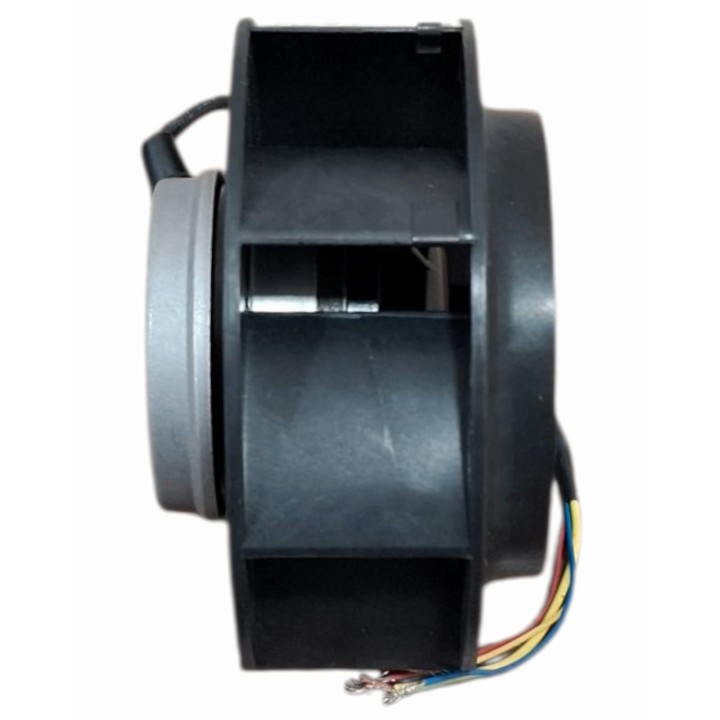

R2E133-BH66-24

$149.50
IVA incluido

Ventiladores

Última actualización

DatasheetR2E133-BH66-24

230V/0.11/0.13A/25W

EBM-PAPST

Delivery time : 1-2 semanas.

Agotado

Interested in this product? Drop us an email and we will let you know when it's available for order.

  Security policy

Tus compras son seguras

  Delivery policy

Envíos gratuitos en compras mayores a 160USD sin iva. La entrega depende de la disponibilidad.

  Return policy

Todos nuestros productos cuentan con una garantía contra defectos de fabricación.

Features

  • Motor M2E052-BF
  • Phase 1~ 1~
  • Nominal voltage / VAC 230 230
  • Frequency / Hz 50 60
  • Method of obtaining
  • data
  • fa fa
  • Valid for approval/
  • standard
  • CE CE
  • Speed (rpm) / min-1 2800 3300
  • Power consumption / W 24 27
  • Current draw / A 0.11 0.13
  • Capacitor / µF 1 1
  • Capacitor voltage / VDB 400 400
  • Capacitor standard S0 (CE) S0 (CE)
  • Min. back pressure / Pa 0 0
  • Min. ambient
  • temperature / °C
  • -25 -25
  • Max. ambient
  • temperature / °C
  • 50 60
  • Starting current / A 0.20 0.21

Aplications

  • The device is exclusively designed as a built-in device for conveying
  • air according to its technical data.
  • Any other usage above and beyond this does not conform with the
  • intended purpose and constitutes misuse of the device.
  • Customer equipment must be capable of withstanding the mechanical
  • and thermal stresses that can arise from this product. This applies for the
  • entire service life of the equipment in which this product is installed.

  • Referencia
    R2E133-BH66-24
  • Nº Pieza fabricante (NPM)
    R2E133-BH66-24
